1.

Choose Your Board

Select the analyzer you need.

2.

Confirm Your Order

Secure online checkout in minutes.

3.

We Prepare & Ship

Calibrated, packed, and on its way.

4.

Test Your Antenna

Plug in and start measuring.

07598215-09cd-4a42-82a1-d7c9f16be930

Why SenseRYX?

  • Requirement Traditional RF Setup SenseRYX
  • Far-field pattern capability Requires chamber + multiple instruments ✅ Integrated
  • Additional instruments VNA + SG + SA + Positioner + PC software ❌ None required
  • Software complexity Professional expertise needed ✅ Intuitive & guided UI
  • Reporting Manual workflow 📄 One-click export (.txt)
  • Measure more. Spend less. Learn faster.

Software Callout

  • User-Friendly Software. Engineered for Productivity. Our software provides:
  • Real-time polar charts while rotating
  • Frequency selection from built-in RF source
  • Dynamic gain tracking
  • Noise filtering & averaging
  • Angle-based markers and comparison mode
  • Designed so engineers, students, and technicians can focus on the antenna, not the equipment.

Most Popular

High-performance kit for demanding RF measurements.

Quick view

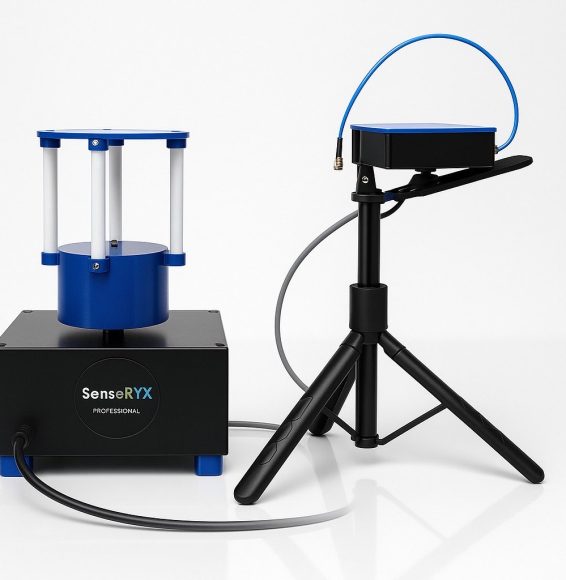

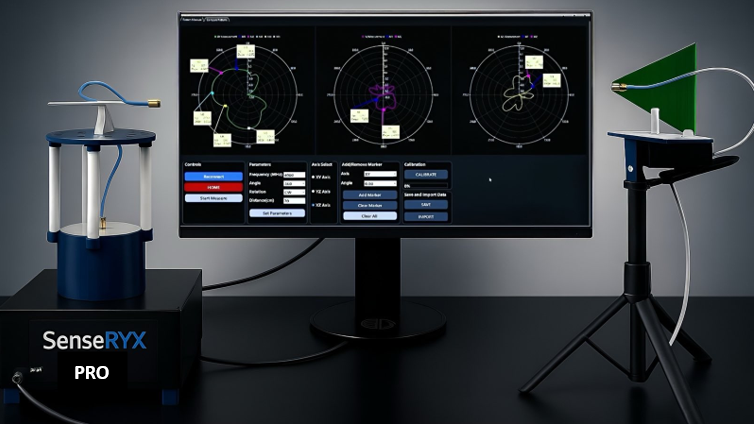

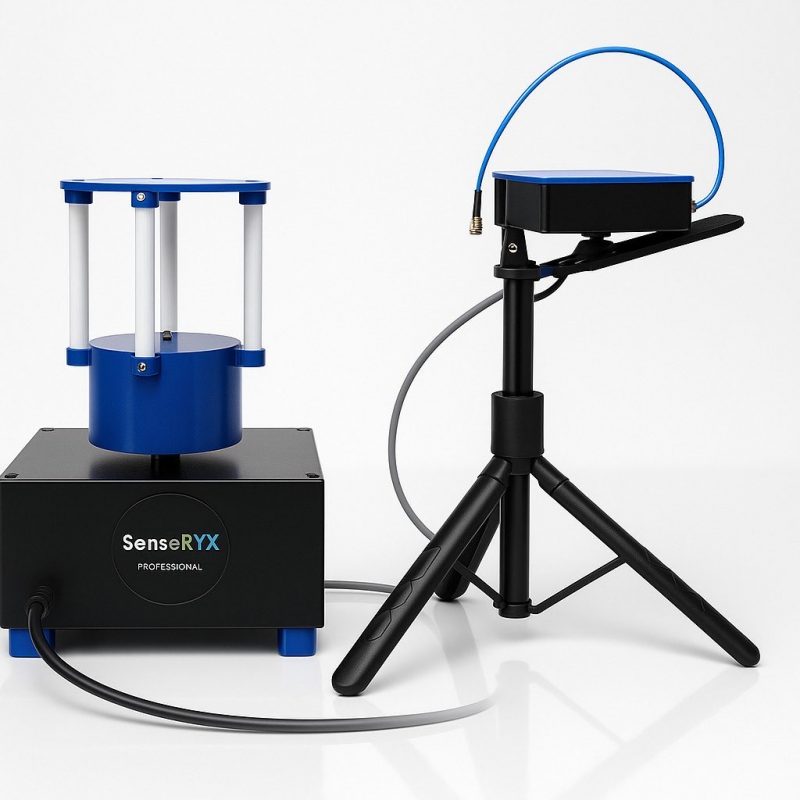

SenseRYX Professional (Up to 6 GHz)

    Perfect for Education

    Compact, budget-friendly system for university labs.

    Quick view

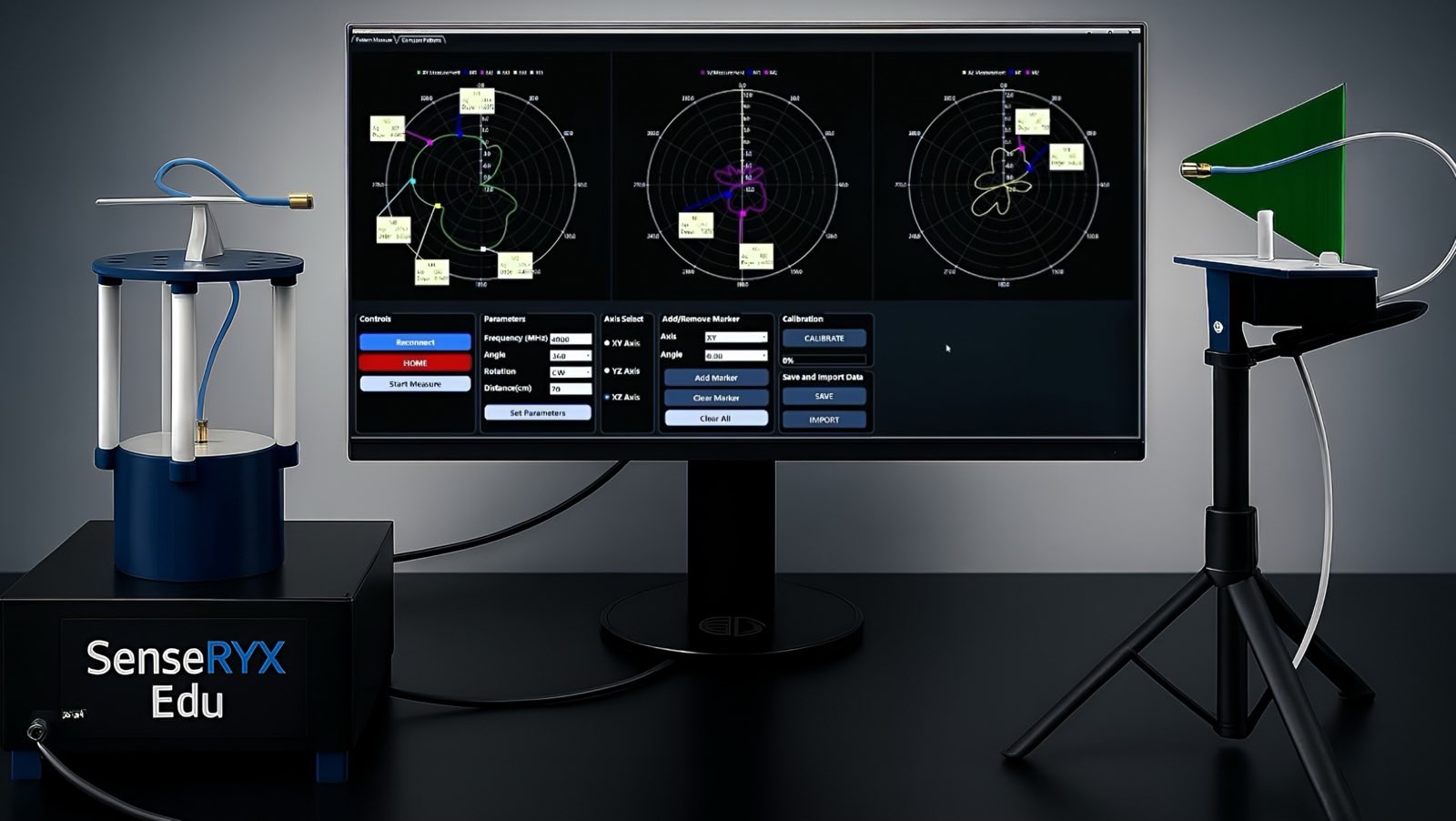

    SenseRYX Edu (Up to 4 GHz)

      Senseryx Changes the Game

      • All-in-one solution for far-field radiation measurement
      • Compact and affordable — a fraction of traditional costs
      • No extra instruments needed (Vector Network Analyzer / Spectrum Analyzer / Signal Generator included)
      • Rapid ROI for labs, startups, and universities
      • Professional-grade results — accessible to every lab.

      Frequently Asked Questions (FAQ) – SenseRYX Antenna Pattern Measurement System

      What is SenseRYX?
      SenseRYX is a compact antenna radiation pattern measurement system that integrates a built-in signal source, receiver, and motorized turntable. It measures 2D antenna radiation performance quickly and does not require any external VNA, spectrum analyzer, or signal generator.
      What models are available?

      Two main versions are offered:
      • SenseRYX EDU (0.4–4 GHz) – ideal for universities and training labs.
      • SenseRYX PRO (0.4–6 GHz) – designed for R&D and professional applications.

      What is the measurement accuracy?

      It typically provides ±1 dB gain accuracy and 0.9° angular resolution, ensuring reliable characterization even for narrow-beam or wideband antennas.

      How does the software work?

      The SenseRYX software (Windows) communicates via USB and provides real-time polar plots, gain vs angle charts, and 360° scanning animation. Data can be exported as txt files.

      Which antenna types are supported?

      Compatible with all 50 Ω antennas such as dipole, monopole, patch, horn, and log-periodic types. Passive antennas can be tested.

      Is an anechoic chamber required?

      No. SenseRYX can be used on a desktop setup with minimum reflections. For best accuracy, a free space of about 2 meter around the setup is recommended.

      How long does a full measurement take?

      A 360° full rotation typically takes 2–3 minutes One axis measurement takes about 1 minute.

      Is there any software license or subscription fee?

      No. The SenseRYX software is permanently licensed with the device and requires no additional subscription.

      What accessories are included?

      Each unit comes with:
      • Reference antenna
      • Motorized rotation platform
      • USB cable
      • Power adapter cable(Mains 220V/110VAC adjust according to country by supplier)
      • Carrying case or foam-cut box
      • Software & User Manual (PDF)

      Which operating systems are supported?

      Compatible with Windows 10 or newer.

      What is the warranty and technical support policy?

      All SenseRYX products are covered by a 2-year warranty. Firmware updates and software support are provided free of charge.

      Where can SenseRYX be used?

      Typical applications include:
      • Antenna R&D and pattern testing labs
      • RF/microwave education and training
      • Pre-compliance product testing
      • IoT, Wi-Fi, BLE, and RF module evaluations

      Is international shipping available?

      Yes. SenseRYX is CE/FCC certified and can be shipped to the USA, EU, Canada, New Zeland, Middle East ext.  regions. But customs and shipping costs are paid by the customer.

      Is a live demo available?

      Yes. Live online (Zoom) or on-site demonstrations are available for universities, research labs, and R&D companies upon request. Please contact us via email(info@rfboards.com)
